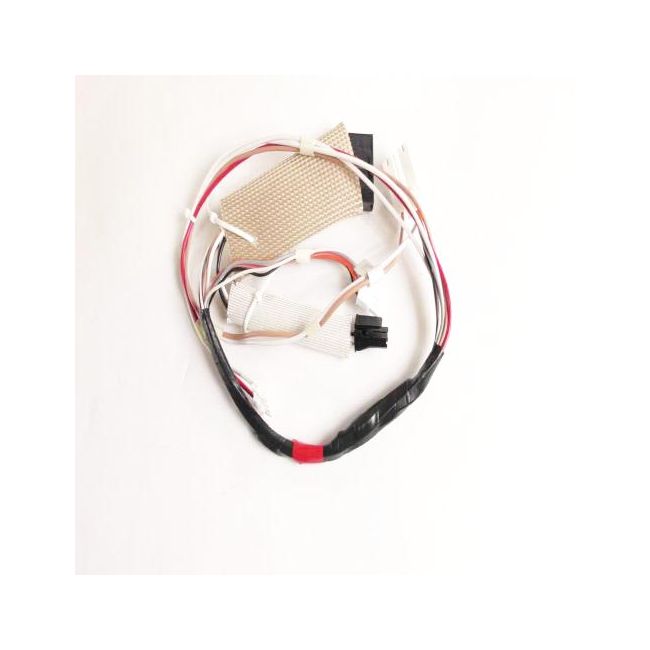

Whirlpool Wire Harness W11189618 OEM Part
was
$99.99
Special Price
$53.99
This manufacture part number # W11189618 replaces our competitor’s part numbers: AP6286720, W10442270, W10669808, W10746598, PS12348822, 4844035.
MFG Number
W11189618
Availability:
In stock
In stock items are shipped the same day on all orders made before 4 PM Eastern Time. Orders made after 4 PM Eastern Time, Weekend or a Holiday will ship the following business day.
The Wire Harness is an original equipment manufacturer (OEM) component specifically crafted for Whirlpool refrigerators and is also compatible with various other brands such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Furthermore, Whirlpool produces compatible parts for both Sears-Kenmore and Ikea appliances. This wire harness plays an essential role by delivering power and transmitting electrical signals to all electronic elements in the refrigerator, ensuring optimal functionality.
This component comprises systematically arranged cables designed to safely transmit electrical signals and low-voltage DC power throughout different sections of the appliance. It includes strategically placed terminals that connect to each circuit board and relay, thereby promoting efficient operation.
Potential problems with wire harnesses can stem from compressed insulation due to improper installation, wear or damage like nicks or cuts in the cable sheathing, or compromised connectors, all of which can disrupt electrical flow.
Signs that a wire harness may be malfunctioning include issues such as non-functioning lights, fans, or temperature controls. The refrigerator may fail to power on, experience power surges, or cause frequent tripping of circuit breakers and blowing of fuses. Visible cracks in the wires or loose connections at cable joins are other indicators.
The wire harness is suitable for various models from brands including Maytag, KitchenAid, Jenn-Air, and Amana, as well as select Kenmore refrigerators, providing reliable performance across these appliances.
This component comprises systematically arranged cables designed to safely transmit electrical signals and low-voltage DC power throughout different sections of the appliance. It includes strategically placed terminals that connect to each circuit board and relay, thereby promoting efficient operation.
Potential problems with wire harnesses can stem from compressed insulation due to improper installation, wear or damage like nicks or cuts in the cable sheathing, or compromised connectors, all of which can disrupt electrical flow.
Signs that a wire harness may be malfunctioning include issues such as non-functioning lights, fans, or temperature controls. The refrigerator may fail to power on, experience power surges, or cause frequent tripping of circuit breakers and blowing of fuses. Visible cracks in the wires or loose connections at cable joins are other indicators.
The wire harness is suitable for various models from brands including Maytag, KitchenAid, Jenn-Air, and Amana, as well as select Kenmore refrigerators, providing reliable performance across these appliances.
