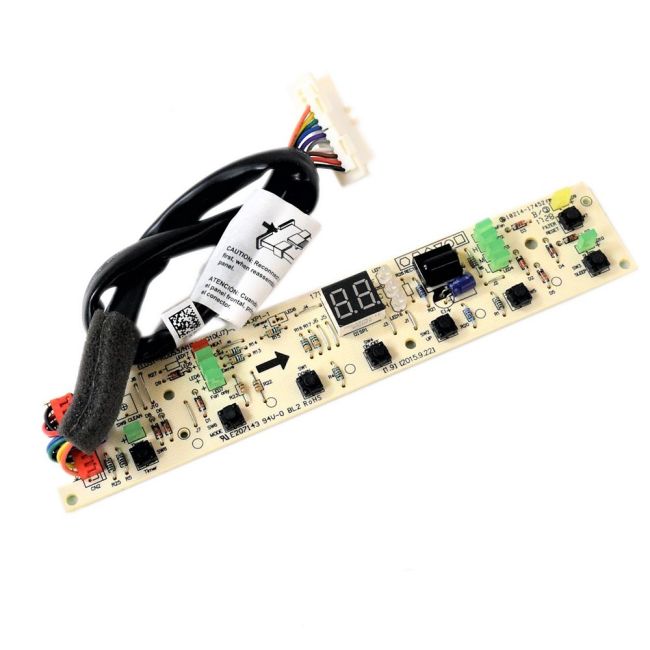

User Control and Display Board 5304496261 OEM Part

User Interface and Display Panel for Air Conditioners

Components used in Sears-Kenmore appliances, such as control boards, are sourced from manufacturers like Frigidaire and Electrolux. These boards, also known as user interface or display boards, play a crucial role in handling the operations of various electronic devices, including household appliances. Specifically, this control board is designed for window air conditioners to show the current air temperature. It is sold individually, measures roughly 7.3 inches in length, and includes a 24-pin connector for easy installation.

Should your air conditioner present error messages, fail to operate, or act erratically, the control board could be the root cause. You can verify its condition by using a multimeter to check for continuity or by inspecting it visually for any signs of damage, such as burn marks.

Located within the front user interface/display panel of the air conditioner, accessing the control board often requires basic tools like a screwdriver or wrench. When replacing the control board, begin by disconnecting the power supply. Consult the user manual for guidance on locating the board, and photograph any wiring connections for reference. The replacement process involves detaching the old board and installing the new one.
