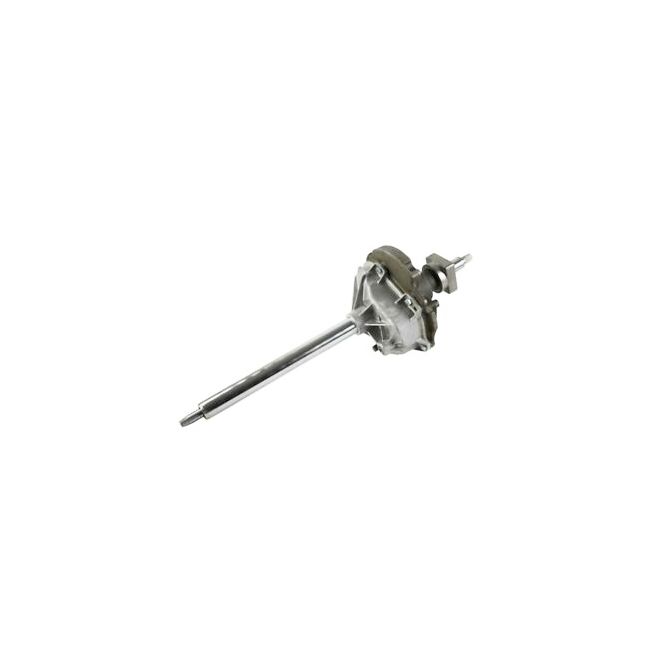

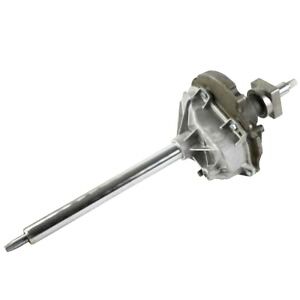

Frigidaire Transmission 134737100 OEM Part

Transmission Assembly Replacement for Washer/Dryer Units <br />Dimensions: 11.75 inches<br /><br />This component serves as the gearbox within washing machines, allowing for varied speed and intensity adjustments. If your washer exhibits issues with spinning or reduced cleaning effectiveness, it might be time to replace the transmission assembly.<br /><br />To replace the transmission assembly, first, disconnect the appliance from the power source. Carefully detach the top control panel by pulling the console forward, releasing the two retaining clips, and unplugging the lid switch's harness connector using a flathead screwdriver. Then, remove the entire cabinet from the rear panel to access the machine's interior. Unscrew the 7/16 bolt from the agitator and lift it from the shaft. Proceed to access the motor and pump, loosening the screws and clips securing them. Disconnect the wiring harness, remove the bolts fixing the motor mount, and extract the old transmission. Install the replacement transmission and reassemble the removed parts.<br /><br />This original equipment manufacturer (OEM) part is designed for compatibility with washer models from Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse. It is sold as a single unit.
