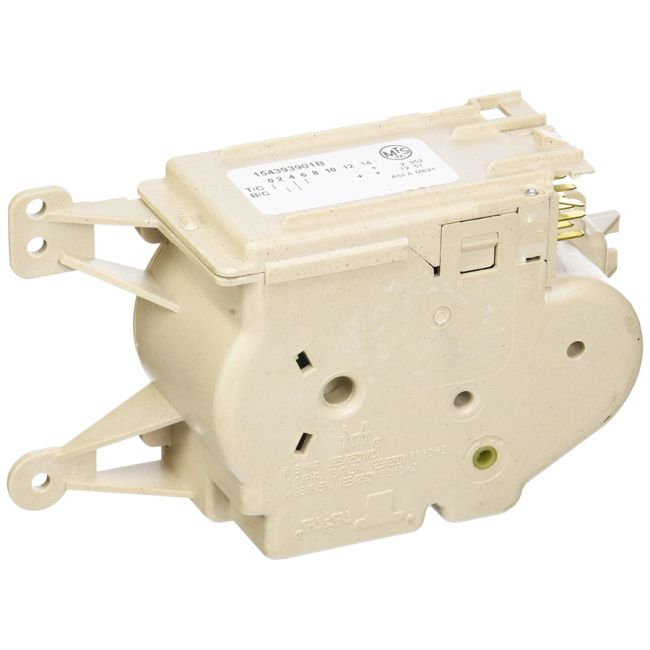

Frigidaire Timer 154393901 OEM Part

Dishwasher Timing Mechanism

The timing mechanism orchestrates the operation cycles within your dishwasher. It is commonly found in models from Frigidaire, Electrolux, and Sears-Kenmore. Its central role is to ensure that each operation phase occurs for the intended length of time by directing power flow to the relevant components. Malfunctions or damage to this mechanism may prevent the dishwasher from starting, disrupt the completion of cycles, or cause it to halt unexpectedly mid-operation. Replacing the timing mechanism becomes necessary when such issues arise.

To perform a replacement, start by disconnecting the dishwasher from its power source. Proceed to remove the timer knob and the door latch handle knob. To access the mechanism, detach the inner door panel from the outer one. Record the configuration of the wire connections before taking out the defective timer. Then, securely connect the wires to the new mechanism and reassemble the unit.

This timing component is also designed to be compatible with dishwashers from Tappan, Uni, and Frigidaire. It is a genuine OEM replacement part, procured directly from the original manufacturer, and is available for purchase individually.
