Whirlpool Surface Element Switch WP8203529 OEM Part

The Surface Burner Control Switch Kit, identified as part number WP8203529, is specifically crafted for dual-sized burners utilized in ranges and cooktops. This kit is suitable for an array of Whirlpool brands, such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral, and additionally accommodates products manufactured by Whirlpool for Sears-Kenmore and Ikea.

The terminal arrangement on this control switch might differ from your original. Therefore, it is recommended to capture a digital photo or document the wire colors and terminal numbers of your current setup prior to removal, ensuring a smoother installation process.

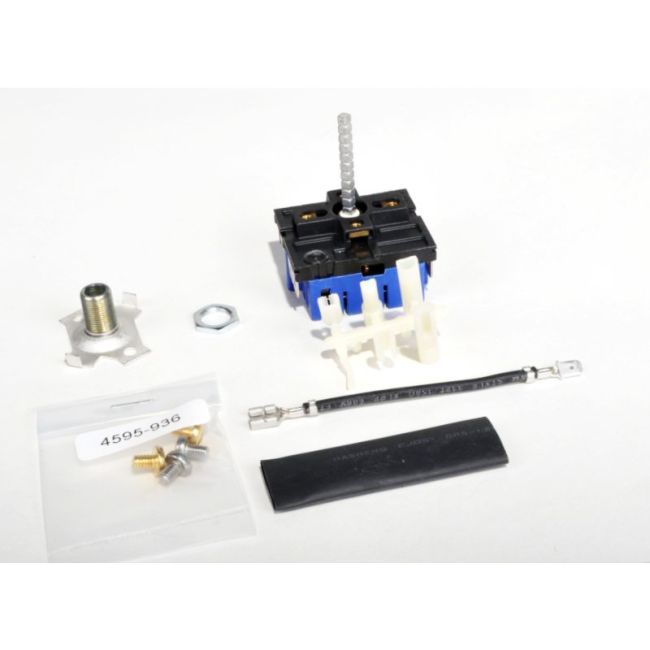

This kit plays a crucial role in managing your range's surface element, enabling the operation of turning it on and off and adjusting heat settings. Included within the kit are all components necessary for installation: the switch, mounting nut, screws, shaft adapters, a jumper wire, and a heat shrink tube.

Prioritize safety by disconnecting the power to the range before beginning installation — either by unplugging the appliance or turning off the circuit breaker. It is also advised to wear work gloves to safeguard your hands during the process.
