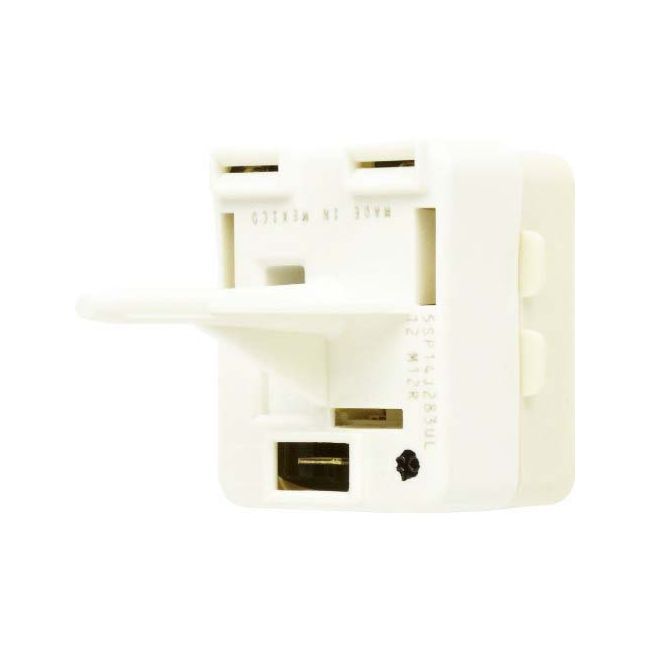

General Electric Start Device WR09X10106 OEM Part

The Refrigerator 5 Speed Compressor Start Device plays a critical role in safeguarding and initiating your refrigerator's motor. It prevents overheating and assists the motor in starting if the appliance fails to power on. This part is compatible with a range of brands, including Hotpoint, General Electric, and Sears-Kenmore. Serving as an OEM replacement, it effectively combines a compressor overload protector and a start relay for specific GE refrigerator models. This component contains a start capacitor and an overload protector, which boost motor torque to trigger the compressor. Once the compressor reaches optimal speed, the relay disconnects automatically, and the overload function interrupts power supply if temperatures become excessively high to prevent overheating.

For installation, connect the three pins located on the compressor's underside and secure the two wires on top. While the process is uncomplicated, always disconnect the refrigerator from the power source before beginning. No specialized tools are required for this procedure.

Consider replacing the Compressor Overload and Start Relay if:
- The refrigerator fails to cool efficiently or stops cooling altogether.
- Unusual clicking sounds are audible from the back of the appliance.
- The compressor repeatedly attempts, but fails, to start.

This assembly is compatible with selected models from GE and Hotpoint.
