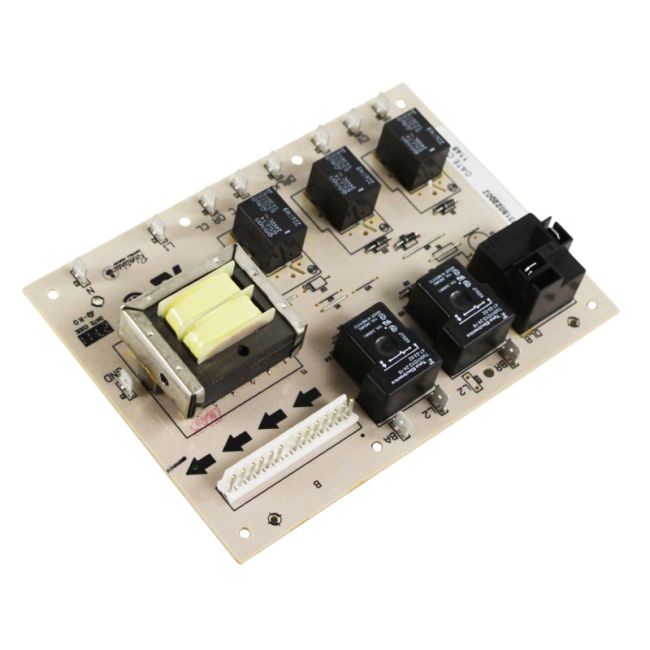

Frigidaire Relay Board 318022002 OEM Part

Relay Board with Transformer for Upper Oven in Range/Stove/Oven

This component resolves issues related to insufficient oven heating during baking processes. It is engineered to work with products from Frigidaire and Electrolux, including models produced by Frigidaire for Sears-Kenmore. Targeting double-oven wall units specifically, this relay control board interfaces with the main control board to regulate the oven's power supply.

Activation of the relay board occurs upon engagement of the power button or setting of the cooking timer. If the relay board experiences a malfunction or shorts, it may impair baking and broiling functionalities. In situations where the relay board fails entirely, the oven may not power on. Additionally, a short circuit could result in the oven turning on and off intermittently.

Installation requires removal of the wall oven from its housing. Once the back of the oven is accessible, the back panel must also be removed. The relay control board is situated near the base, adjacent to the utility drawer. To replace the board, disconnect the wires, disengage the mounting clips, and remove the existing component. Install the new board by reconnecting the wires and securing the back panel. Before reinstalling the oven, test it to verify proper operation.

This part is an authentic OEM product, procured directly from the manufacturer, and is compatible only with Frigidaire wall ovens.
