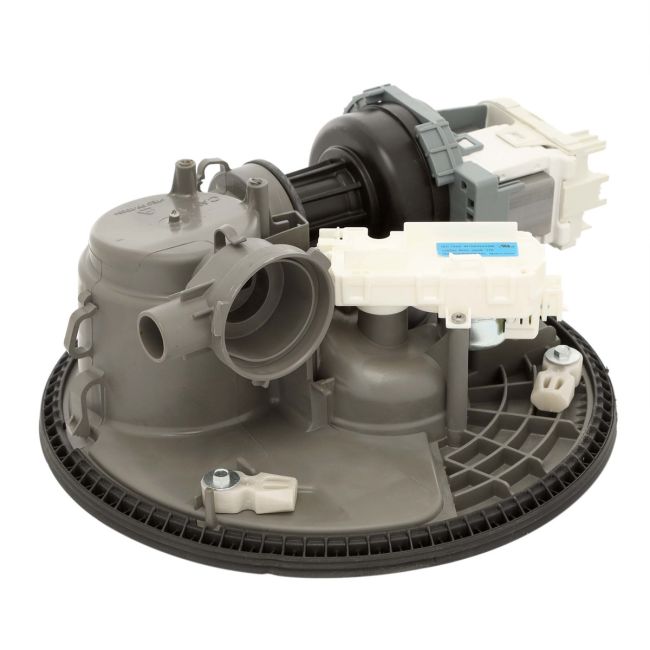

Dishwasher Pump & Motor WPW10671942 OEM Part

The Dishwasher Sump and Motor Assembly functions to channel water from the sump region to the dishwasher's spray arms. This unit incorporates the circulation pump alongside an impeller, motor, and the complete sump, which features the pump housing, water filters, chopper blade assembly, water collection reservoirs, and sensor enclosures.<br /><br />Positioned at the base of the dishwasher tub, the assembly can be replaced either entirely or in specific sections, based on user requirements. Opting for a full replacement is generally more straightforward.<br /><br />Manufactured by Whirlpool, this component is compatible with several brands, including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral, with parts also available for Sears-Kenmore and Ikea dishwashers.<br /><br />To replace the sump and motor assembly, the following procedure should be followed:<br /><br />1. Disable the power and water supply.<br />2. Unscrew the fasteners holding the lower access panel in place.<br />3. Detach the water supply line from the inlet valve.<br />4. Remove the screws from the junction box cover and note the wire arrangement.<br />5. Unscrew the bracket fasteners and detach the drain hose.<br />6. Open the dishwasher door and remove the mounting screws.<br />7. Slide the dishwasher out from the cabinet and unhook the hinge ropes.<br />8. Unscrew the upper door panel.<br />9. Tilt the dishwasher backward and unclip the fill hose.<br />10. Take out the old sump and motor assembly and position the new pump with the seal and sump.<br /><br />This authentic replacement component is available for individual purchase and is designed to fit brands such as Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore.
