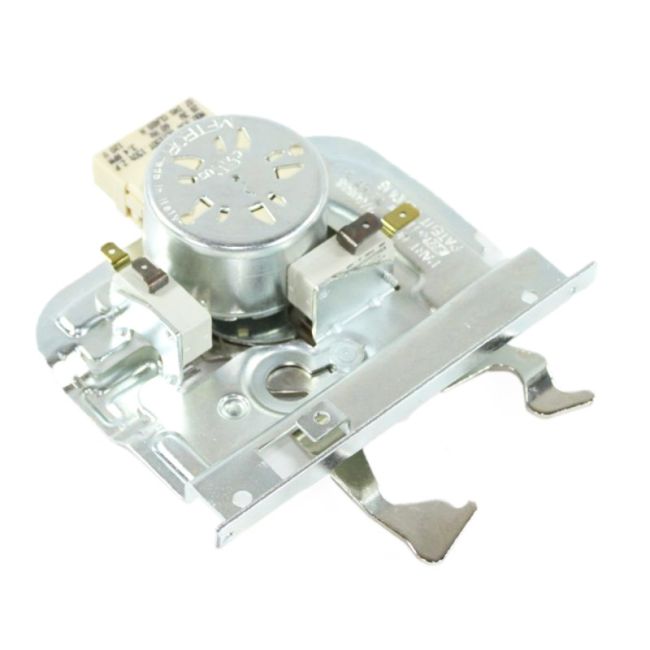

Whirlpool Motorized Door Latch Assembly WP9760889 OEM Part

Oven Door Lock Motor and Switch Assembly

In the event that your oven door fails to open following a self-cleaning cycle, the component in question may be required. This authentic replacement serves as a motor and switch assembly intended to maintain the secure closure of the oven door. With time, both the motor and the switch may degrade as a consequence of regular use, making replacement necessary.

This part accommodates various brands, including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, Admiral, as well as items manufactured for Sears-Kenmore and Ikea. It functions to ensure your oven door remains reliably shut.

To perform the replacement, adhere to the following instructions:
1. Disconnect the oven's power supply.
2. Move the oven away from the wall.
3. Detach the upper rear access panel.
4. Identify the lock motor and switch assembly.
5. Detach the wires from both the motor and the switch.
6. Unscrew the two fasteners securing the assembly.
7. Remove the connecting rod.

To install the new assembly:
1. Reattach the connecting rod.
2. Secure the fasteners.
3. Reconnect the wires to the motor and switch.
4. Reinstall the back panel.

This original equipment manufacturer (OEM) part is offered individually and is compatible with a variety of brands.
