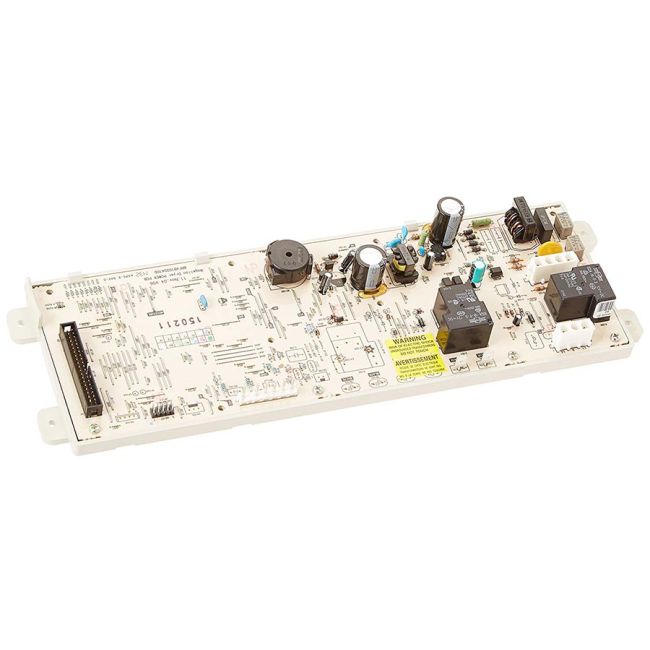

General Electric Main Power Board WE4M489 OEM Part

Main Power Board for Gas Dryers

This essential component is crafted for gas dryers, compatible with brands including GE, Hotpoint, General Electric, RCA, and Sears-Kenmore. As the primary control unit, it oversees the dryer’s operations and settings. If your appliance is experiencing issues such as failure to start, spin, or dry clothes efficiently, a replacement of the main control board may be necessary.

To replace the main control board, follow these steps: First, reposition the dryer to access the rear panel. Detach the upper back cover. Gently press the front of the control panel while using a putty knife to lift it from its mounting brackets. Carefully disconnect the wires linked to the old control board, documenting their configuration with a photograph. Detach the air hose, remove the mounting screws, and unfasten the locking tabs to remove the existing board. Position the new board by securing it into the locking tabs, reconnecting the air hose, and reattaching the wires accordingly.

This authentic control board fits perfectly in General Electric, Hotpoint, RCA, and Sears/Kenmore dryers.
