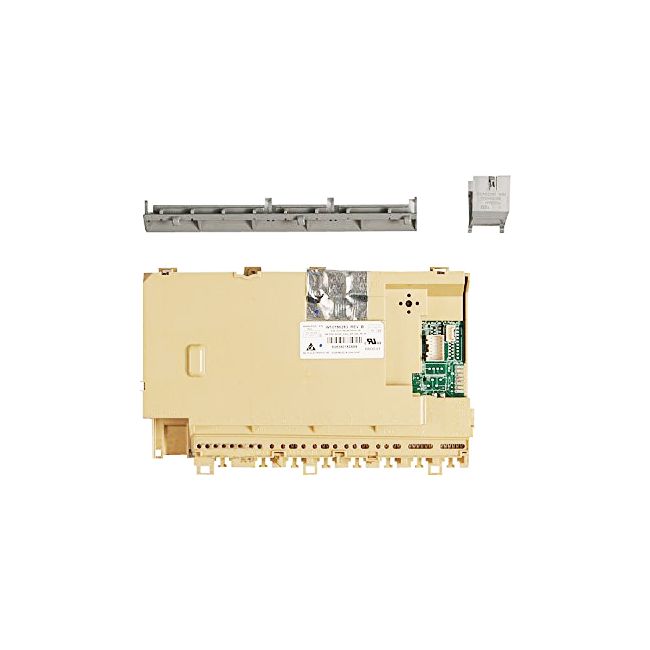

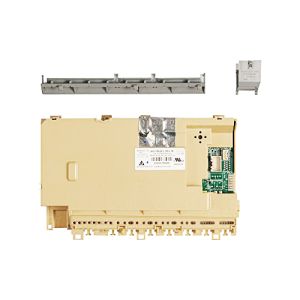

Whirlpool Main Control Board W10813313 OEM Part

Whirlpool Corporation, a manufacturer associated with brands such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral, provides a genuine replacement control board for their dishwasher units. This component, essential for managing the dishwasher’s key operations, is particularly relevant if the appliance is experiencing power issues or draining problems, suggesting the need for replacement. The procedure for installing the new control board is straightforward.

To begin the installation, first remove the external door panel by unfastening the mounting screws. Gently lift the control panel and disconnect the wire touchpad harness from its connection point on the control board. With a flathead screwdriver, carefully release the locking tab and slide the control board housing leftward. Detach the wire covers and take note of the wire connector orientation before removing them from the existing control board.

For installing the new control board, start by attaching the wire connectors to the correct terminals. Ensure the wire covers are aligned correctly and firmly snapped into place. Position the tabs of the control board housing into the designated slots within the mounting bracket, then slide the housing rightward to secure it. Reattach the control panel by connecting the control pad wire harness to the new board, align the panel, and tighten the mounting screws to complete the reinstallation.

The replacement control board is suitable for Whirlpool and affiliated brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore dishwashers.
