General Electric Ice Bucket Auger WR17X11263 OEM Part
was
$89.00
Special Price
$55.00
This manufacture part number # WR17X11263 replaces our competitor’s part numbers: AP3190087, 1091906, AH773810, EA773810, PS773810, WR17X10925, B00MOCV7HW.
MFG Number
WR17X11263
Availability:
Out of stock

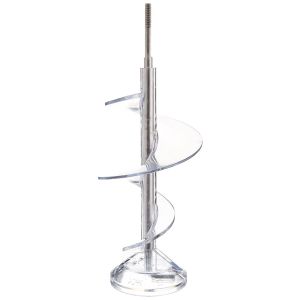

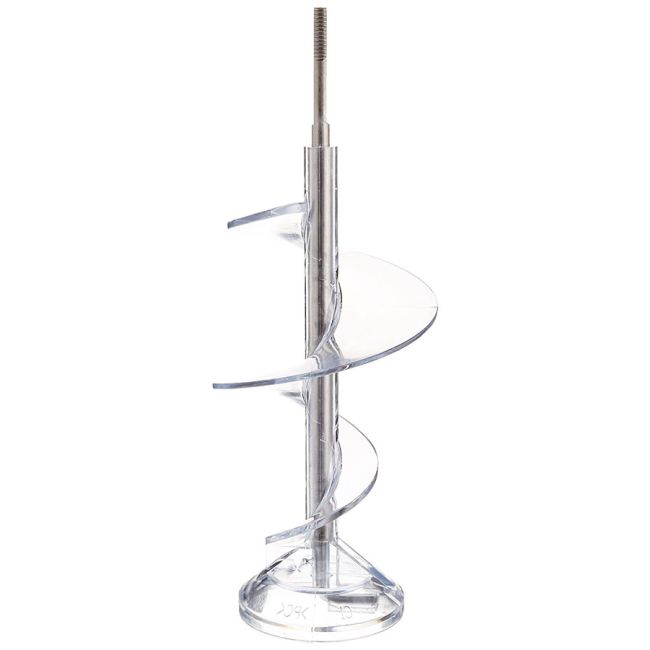

Ice Dispenser Auger for Refrigerator/Freezer
If your icemaker is failing to release ice, this component may resolve the issue. Designed to work with GE products such as Hotpoint, General Electric, and Sears-Kenmore, this ice dispenser auger is a genuine OEM part, intended for use in the freezer compartment. The auger's role is to rotate and crush the ice within the container.
To install the auger, adhere to the following instructions:
1. Remove the entire ice bucket assembly.
2. With a Phillips head screwdriver, take off the cover, shield, and actuator arm bracket.
3. Detach the spring securing the arm and extract the arm from the setup.
4. Use the screwdriver to carefully remove the e-clip and washer.
5. Employ a wrench to unscrew the auger from its housing.
Please note that this package contains only the auger, and not the full assembly or housing.
If your icemaker is failing to release ice, this component may resolve the issue. Designed to work with GE products such as Hotpoint, General Electric, and Sears-Kenmore, this ice dispenser auger is a genuine OEM part, intended for use in the freezer compartment. The auger's role is to rotate and crush the ice within the container.
To install the auger, adhere to the following instructions:
1. Remove the entire ice bucket assembly.
2. With a Phillips head screwdriver, take off the cover, shield, and actuator arm bracket.
3. Detach the spring securing the arm and extract the arm from the setup.
4. Use the screwdriver to carefully remove the e-clip and washer.
5. Employ a wrench to unscrew the auger from its housing.
Please note that this package contains only the auger, and not the full assembly or housing.
