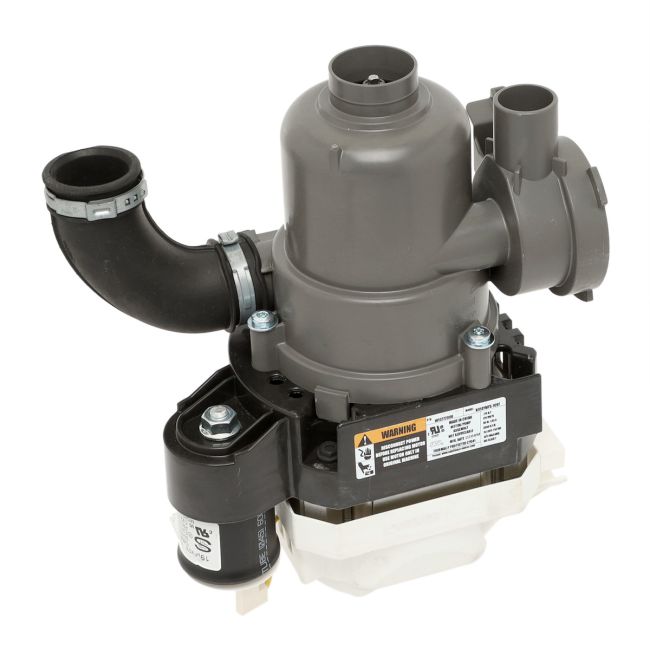

Dishwasher Circulation Pump W10902589 OEM Part

The Dishwasher Circulation Pump and Motor Assembly is a crucial component found in appliances produced by Whirlpool, which encompasses several brands such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Additionally, Whirlpool manufactures parts for Sears-Kenmore and Ikea. Within the dishwasher, this component comprises an impeller and a motor, and its primary role is to circulate water through the wash arms. Should the circulation pump suffer damage or malfunction, it may lead to reduced cleaning efficacy or increased operational noise.<br /><br />To proceed with replacing the circulation pump, ensure that both the water supply and electrical connection to the dishwasher are switched off. Begin by detaching the spray arms, followed by the removal of the toe and bottom access panels. Carefully pull the dishwasher away from the wall, then remove the drain pump, using a towel to collect any residual water. Afterward, extract the circulation pump and motor assembly. Transfer any necessary small components to the new part and install it back into the dishwasher. Once the appliance is reassembled, restore both water and electrical connections before resuming use.<br /><br />This replacement circulation pump is compatible with dishwashers from Kenmore, Whirlpool, and KitchenAid. It is supplied individually and is an authentic OEM part sourced directly from the manufacturer.
