Whirlpool Diode WPR9800486 OEM Part

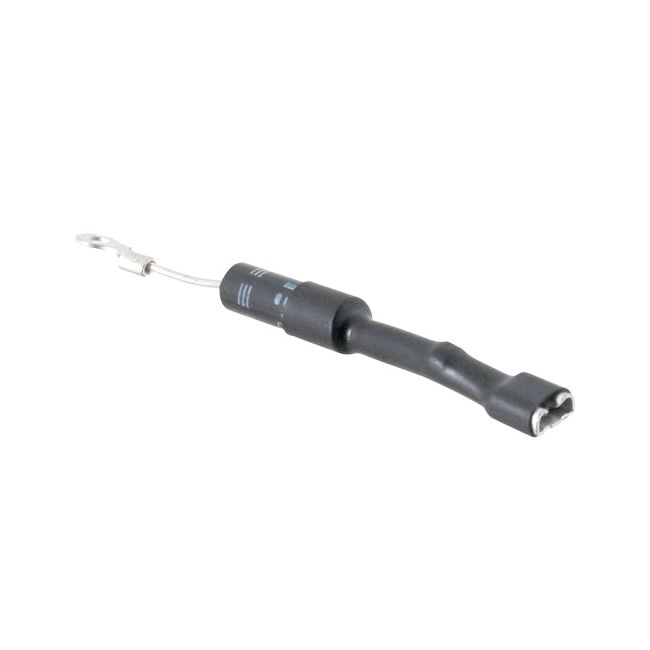

The Microwave Black Sleeve Diode, an original equipment manufacturer (OEM) component from Whirlpool, fits multiple brands such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, Admiral, and appliances sold under the Sears-Kenmore and Ikea labels. This diode is essential for the microwave's operation as it regulates the high-voltage electricity. Positioned within the high-voltage circuit, it interfaces with the magnetron and capacitor, among other components. Its key role is to allow electrical flow in a single direction, thus converting alternating current (AC) into direct current (DC). This conversion is crucial for energizing the magnetron, enabling the generation of microwave radiation necessary for cooking and heating.

Moreover, this Whirlpool diode is applicable in a variety of appliances from brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears. One of the typical issues resolved by replacing this part is a lack of heating in the microwave, which suggests a possible diode malfunction requiring attention to restore operational efficiency.
