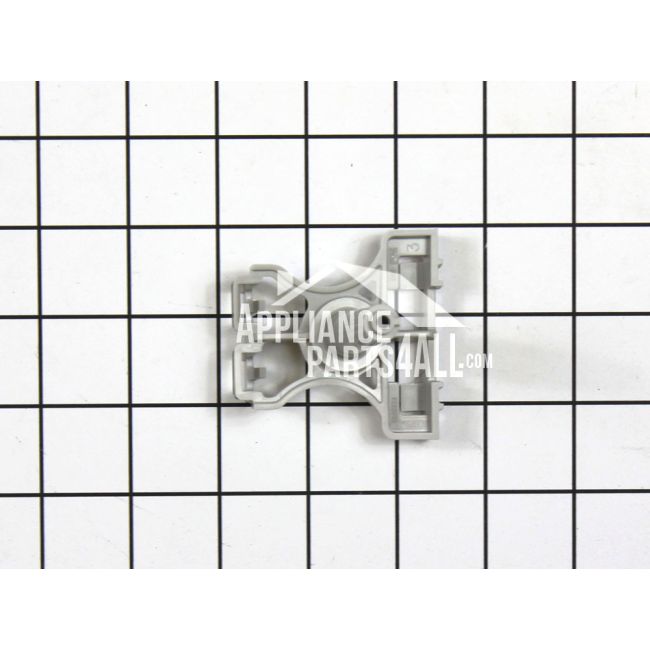

Whirlpool Center Wash Arm Support WP8539324 OEM Part
was
$4.99
Special Price
$3.99
WP8539324 replaces: AP3178206, 9742994, 8268844, 962126, AH734018, EA734018, PS734018, 8539324.
MFG Number
WP8539324
Availability:
In stock
‐ Ships Today
In stock items are shipped the same day on all orders made before 4 PM Eastern Time. Orders made after 4 PM Eastern Time, Weekend or a Holiday will ship the following business day.
Upper Spray Arm Installation for Dishwashers
Whirlpool Corporation, known for its diverse brand offerings such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral, also supplies products to Sears-Kenmore and Ikea. Recently, Whirlpool has improved the design of the upper spray arm mount, eliminating the need for a clip and screw during installation.
To install the new upper spray arm mount, proceed with the following instructions:
1. Detach the rack stops from the upper dish rack and remove the rack completely.
2. Unscrew the fastener securing the spray arm, remove the spray arm, and slide out the feeding tube.
3. Turn the rack over and detach the bracket from the existing mount.
4. Secure the new mount by snapping it into position, then reassemble the remaining parts.
Whirlpool Corporation, known for its diverse brand offerings such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral, also supplies products to Sears-Kenmore and Ikea. Recently, Whirlpool has improved the design of the upper spray arm mount, eliminating the need for a clip and screw during installation.
To install the new upper spray arm mount, proceed with the following instructions:
1. Detach the rack stops from the upper dish rack and remove the rack completely.
2. Unscrew the fastener securing the spray arm, remove the spray arm, and slide out the feeding tube.
3. Turn the rack over and detach the bracket from the existing mount.
4. Secure the new mount by snapping it into position, then reassemble the remaining parts.
